NSK 6802ZZ Deep groove ball bearings
Also known as : 6802ZZ, 61802-2Z
- Inside Diameter: 15 mm
- Outside Diameter: 24 mm
- Width: 5 mm
- Basic dynamic load rating: 2.07 kN
- Basic static load rating: 1.26 kN
NSK 6802ZZ

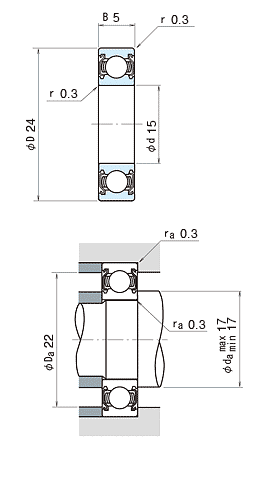

NSK 6802ZZ details
| model | 6802ZZ |
|---|---|
| d | 15 mm |
| D | 24 mm |
| B | 5 mm |
| rmin. | 0.3 mm |
| Cr |
2070 N 212 kgf |
| C0r |
1260 N 128 kgf |
| Limiting speeds | 28000 min-1 (Grease) |
| f0 | 15.8 (Factor) |
| da min | 17 mm |
| da max | 17 mm |
| Da | 22 mm |
| ra | 0.3 mm |
| Mass | 0.007 kg (approx.) |
NSK 6802ZZ bearing cross reference
302K
15 mmx 24 mmx 5 mm
301K
15 mmx 24 mmx 5 mm
62207-2RS-C3
15 mmx 24 mmx 5 mm
62306-2RS-C3
15 mmx 24 mmx 5 mm
63005-2RS-C3
15 mmx 24 mmx 5 mm
62205-2RS-C3
15 mmx 24 mmx 5 mm
62304-2RS-C3
15 mmx 24 mmx 5 mm
62204-2RS-C3
15 mmx 24 mmx 5 mm
63003-2RS-C3
15 mmx 24 mmx 5 mm
62303-2RS-C3
15 mmx 24 mmx 5 mm
63002-2RS-C3
15 mmx 24 mmx 5 mm
