NSK 6307DDU Deep groove ball bearings
Also known as : 6307DDU, 6307LLU, 6307-2RS1, 6307-2RSR
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 21 mm
- Basic dynamic load rating: 33.5 kN
- Basic static load rating: 19.2 kN
NSK 6307DDU

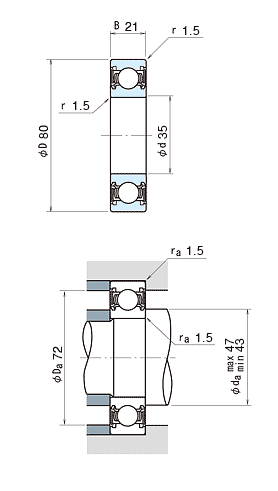

NSK 6307DDU details
| model | 6307DDU |
|---|---|
| d | 35 mm |
| D | 80 mm |
| B | 21 mm |
| rmin. | 1.5 mm |
| Cr |
33500 N 3400 kgf |
| C0r |
19200 N 1960 kgf |
| Limiting speeds | 6000 min-1 (Grease) |
| f0 | 13.2 (Factor) |
| da min | 43 mm |
| da max | 47 mm |
| Da | 72 mm |
| ra | 1.5 mm |
| Mass | 0.464 kg (approx.) |
NSK 6307DDU bearing cross reference
302K
35 mmx 80 mmx 21 mm
301K
35 mmx 80 mmx 21 mm
62207-2RS-C3
35 mmx 80 mmx 21 mm
62306-2RS-C3
35 mmx 80 mmx 21 mm
63005-2RS-C3
35 mmx 80 mmx 21 mm
62205-2RS-C3
35 mmx 80 mmx 21 mm
62304-2RS-C3
35 mmx 80 mmx 21 mm
62204-2RS-C3
35 mmx 80 mmx 21 mm
63003-2RS-C3
35 mmx 80 mmx 21 mm
62303-2RS-C3
35 mmx 80 mmx 21 mm
63002-2RS-C3
35 mmx 80 mmx 21 mm
