NSK 6310DDUC3 Deep groove ball bearings
Also known as : 6310DDU, 6310LLUC3, 6310-2RS1C3, 6310-2RSRC3
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 62 kN
- Basic static load rating: 38.5 kN
NSK 6310DDUC3

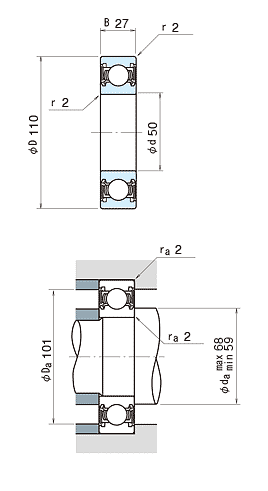

NSK 6310DDUC3 details
| model | 6310DDUC3 |
|---|---|
| d | 50 mm |
| D | 110 mm |
| B | 27 mm |
| rmin. | 2.0 mm |
| Cr |
62000 N 6300 kgf |
| C0r |
38500 N 3900 kgf |
| Limiting speeds | 4300 min-1 (Grease) |
| f0 | 13.2 (Factor) |
| da min | 59 mm |
| da max | 68 mm |
| Da | 101 mm |
| ra | 2 mm |
| Mass | 1.060 kg (approx.) |
NSK 6310DDUC3 bearing cross reference
302K
50 mmx 110 mmx 27 mm
301K
50 mmx 110 mmx 27 mm
62207-2RS-C3
50 mmx 110 mmx 27 mm
62306-2RS-C3
50 mmx 110 mmx 27 mm
63005-2RS-C3
50 mmx 110 mmx 27 mm
62205-2RS-C3
50 mmx 110 mmx 27 mm
62304-2RS-C3
50 mmx 110 mmx 27 mm
62204-2RS-C3
50 mmx 110 mmx 27 mm
63003-2RS-C3
50 mmx 110 mmx 27 mm
62303-2RS-C3
50 mmx 110 mmx 27 mm
63002-2RS-C3
50 mmx 110 mmx 27 mm
