NSK 6313VV Deep groove ball bearings
Also known as : 6313VV, 6313LLB
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 92.5 kN
- Basic static load rating: 60 kN
NSK 6313VV

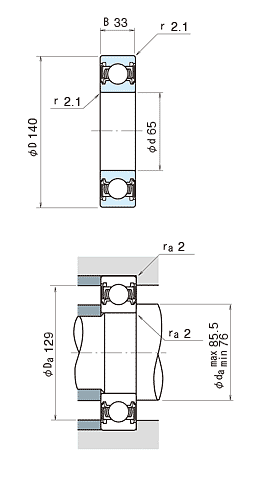

NSK 6313VV details
| model | 6313VV |
|---|---|
| d | 65 mm |
| D | 140 mm |
| B | 33 mm |
| rmin. | 2.1 mm |
| Cr |
92500 N 9450 kgf |
| C0r |
60000 N 6100 kgf |
| Limiting speeds | 4800 min-1 (Grease) |
| f0 | 13.2 (Factor) |
| da min | 76 mm |
| da max | 85.5 mm |
| Da | 129 mm |
| ra | 2 mm |
| Mass | 2.110 kg (approx.) |
NSK 6313VV bearing cross reference
302K
65 mmx 140 mmx 33 mm
301K
65 mmx 140 mmx 33 mm
62207-2RS-C3
65 mmx 140 mmx 33 mm
62306-2RS-C3
65 mmx 140 mmx 33 mm
63005-2RS-C3
65 mmx 140 mmx 33 mm
62205-2RS-C3
65 mmx 140 mmx 33 mm
62304-2RS-C3
65 mmx 140 mmx 33 mm
62204-2RS-C3
65 mmx 140 mmx 33 mm
63003-2RS-C3
65 mmx 140 mmx 33 mm
62303-2RS-C3
65 mmx 140 mmx 33 mm
63002-2RS-C3
65 mmx 140 mmx 33 mm
