NSK 6332C3 Deep groove ball bearings
Also known as : 6332C3
- Inside Diameter: 160 mm
- Outside Diameter: 340 mm
- Width: 68 mm
- Basic dynamic load rating: 278 kN
- Basic static load rating: 287 kN
NSK 6332C3

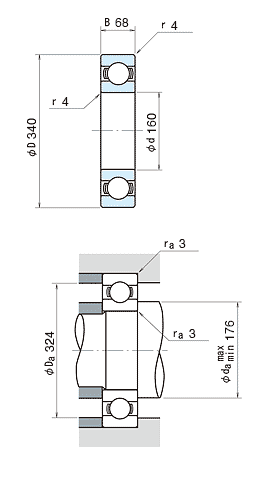

NSK 6332C3 details
| model | 6332C3 |
|---|---|
| d | 160 mm |
| D | 340 mm |
| B | 68 mm |
| rmin. | 4.0 mm |
| Cr |
278000 N 28300 kgf |
| C0r |
287000 N 29200 kgf |
| Limiting speeds | 1700 min-1 (Grease) |
| Limiting speeds | 2000 min-1 (Oil) |
| f0 | 13.9 (Factor) |
| da min | 176.0 mm |
| da max | 0.0 mm |
| Da | 324.0 mm |
| ra | 3.0 mm |
| Mass | 26.200 kg (approx.) |
NSK 6332C3 bearing cross reference
302K
160 mmx 340 mmx 68 mm
301K
160 mmx 340 mmx 68 mm
62207-2RS-C3
160 mmx 340 mmx 68 mm
62306-2RS-C3
160 mmx 340 mmx 68 mm
63005-2RS-C3
160 mmx 340 mmx 68 mm
62205-2RS-C3
160 mmx 340 mmx 68 mm
62304-2RS-C3
160 mmx 340 mmx 68 mm
62204-2RS-C3
160 mmx 340 mmx 68 mm
63003-2RS-C3
160 mmx 340 mmx 68 mm
62303-2RS-C3
160 mmx 340 mmx 68 mm
63002-2RS-C3
160 mmx 340 mmx 68 mm
