NSK 6017 Deep groove ball bearings
Also known as : 6017
- Inside Diameter: 85 mm
- Outside Diameter: 130 mm
- Width: 22 mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 43 kN
NSK 6017
NSK 6017 details

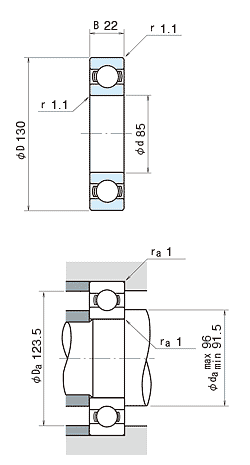

| model | 6017 |
|---|---|
| d | 85 mm |
| D | 130 mm |
| B | 22 mm |
| rmin. | 1.1 mm |
| Cr |
49500 N 5050 kgf |
| C0r |
43000 N 4400 kgf |
| Limiting speeds | 5000 min-1 (Grease) |
| Limiting speeds | 6000 min-1 (Oil) |
| f0 | 15.8 (Factor) |
| da min | 91.5 mm |
| da max | 96.0 mm |
| Da | 123.5 mm |
| ra | 1.0 mm |
| Mass | 0.918 kg (approx.) |
