NSK 6218 Deep groove ball bearings
Also known as : 6218
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 30 mm
- Basic dynamic load rating: 96 kN
- Basic static load rating: 71.5 kN
NSK 6218

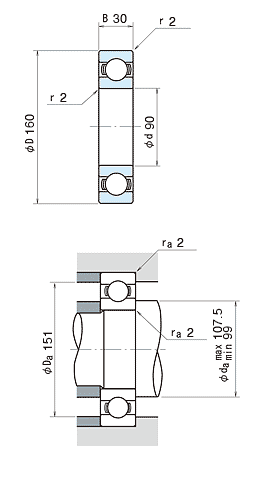

NSK 6218 details
| model | 6218 |
|---|---|
| d | 90 mm |
| D | 160 mm |
| B | 30 mm |
| rmin. | 2.0 mm |
| Cr |
96000 N 9800 kgf |
| C0r |
71500 N 7300 kgf |
| Limiting speeds | 4000 min-1 (Grease) |
| Limiting speeds | 4800 min-1 (Oil) |
| f0 | 14.5 (Factor) |
| da min | 99.0 mm |
| da max | 107.5 mm |
| Da | 151.0 mm |
| ra | 2.0 mm |
| Mass | 2.180 kg (approx.) |
NSK 6218 bearing cross reference
302K
90 mmx 160 mmx 30 mm
301K
90 mmx 160 mmx 30 mm
62207-2RS-C3
90 mmx 160 mmx 30 mm
62306-2RS-C3
90 mmx 160 mmx 30 mm
63005-2RS-C3
90 mmx 160 mmx 30 mm
62205-2RS-C3
90 mmx 160 mmx 30 mm
62304-2RS-C3
90 mmx 160 mmx 30 mm
62204-2RS-C3
90 mmx 160 mmx 30 mm
63003-2RS-C3
90 mmx 160 mmx 30 mm
62303-2RS-C3
90 mmx 160 mmx 30 mm
63002-2RS-C3
90 mmx 160 mmx 30 mm
