NSK 6226 Deep groove ball bearings
Also known as : 6226
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 40 mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 146 kN
NSK 6226

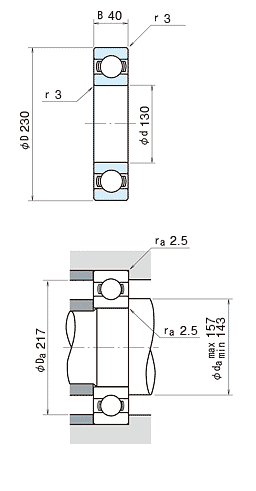

NSK 6226 details
| model | 6226 |
|---|---|
| d | 130 mm |
| D | 230 mm |
| B | 40 mm |
| rmin. | 3.0 mm |
| Cr |
167000 N 17000 kgf |
| C0r |
146000 N 14900 kgf |
| Limiting speeds | 2400 min-1 (Grease) |
| Limiting speeds | 3000 min-1 (Oil) |
| f0 | 14.5 (Factor) |
| da min | 143.0 mm |
| da max | 157.0 mm |
| Da | 217.0 mm |
| ra | 2.5 mm |
| Mass | 5.960 kg (approx.) |
NSK 6226 bearing cross reference
302K
130 mmx 230 mmx 40 mm
301K
130 mmx 230 mmx 40 mm
62207-2RS-C3
130 mmx 230 mmx 40 mm
62306-2RS-C3
130 mmx 230 mmx 40 mm
63005-2RS-C3
130 mmx 230 mmx 40 mm
62205-2RS-C3
130 mmx 230 mmx 40 mm
62304-2RS-C3
130 mmx 230 mmx 40 mm
62204-2RS-C3
130 mmx 230 mmx 40 mm
63003-2RS-C3
130 mmx 230 mmx 40 mm
62303-2RS-C3
130 mmx 230 mmx 40 mm
63002-2RS-C3
130 mmx 230 mmx 40 mm
