NSK 6318 Deep groove ball bearings
Also known as : 6318
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 143 kN
- Basic static load rating: 107 kN
NSK 6318

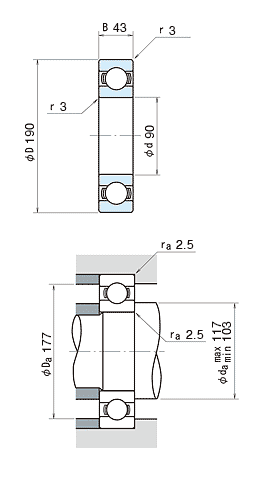

NSK 6318 details
| model | 6318 |
|---|---|
| d | 90 mm |
| D | 190 mm |
| B | 43 mm |
| rmin. | 3.0 mm |
| Cr |
143000 N 14500 kgf |
| C0r |
107000 N 11000 kgf |
| Limiting speeds | 3600 min-1 (Grease) |
| Limiting speeds | 4300 min-1 (Oil) |
| f0 | 13.3 (Factor) |
| da min | 103.0 mm |
| da max | 117.0 mm |
| Da | 177.0 mm |
| ra | 2.5 mm |
| Mass | 4.980 kg (approx.) |
NSK 6318 bearing cross reference
302K
90 mmx 190 mmx 43 mm
301K
90 mmx 190 mmx 43 mm
62207-2RS-C3
90 mmx 190 mmx 43 mm
62306-2RS-C3
90 mmx 190 mmx 43 mm
63005-2RS-C3
90 mmx 190 mmx 43 mm
62205-2RS-C3
90 mmx 190 mmx 43 mm
62304-2RS-C3
90 mmx 190 mmx 43 mm
62204-2RS-C3
90 mmx 190 mmx 43 mm
63003-2RS-C3
90 mmx 190 mmx 43 mm
62303-2RS-C3
90 mmx 190 mmx 43 mm
63002-2RS-C3
90 mmx 190 mmx 43 mm
