NTN NJ2204E Cylindrical roller bearing
Also known as : NJ2204E
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 18 mm
- Basic dynamic load rating: 30.5 kN
- Basic static load rating: 28.3 kN
NTN NJ2204E
NTN NJ2204E details
| Part Number | NJ2204E |
|---|---|
| Brand | NTN |
| Type | Cylindrical roller bearings NJ type |
| Mass | - kg |

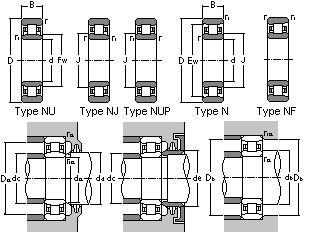

| Boundary dimensions (mm) | |
| Inner dia. (d) | 20 |
| Outer dia. (D) | 47 |
| Width (B) | 18 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 30.5 |
| Static (Cor) | 28.3 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 3100 |
| Static (Cor) | 2890 |
| Limiting speed (min-1) | |
| Grease | 14000 |
| Oil | 16000 |
| Abutment and fillet dimensions (mm) | |
| da min | 24 |
| Da max | 42 |
| ras max | 1 |
