FAG NN3088-AS-K-M-SP Cylindrical roller bearing
Also known as : NN3088-AS-K-M-SP
- Inside Diameter: 440 mm
- Outside Diameter: 650 mm
- Width: 157 mm
- Basic dynamic load rating: 2430 kN
- Basic static load rating: 5100 kN
FAG NN3088-AS-K-M-SP

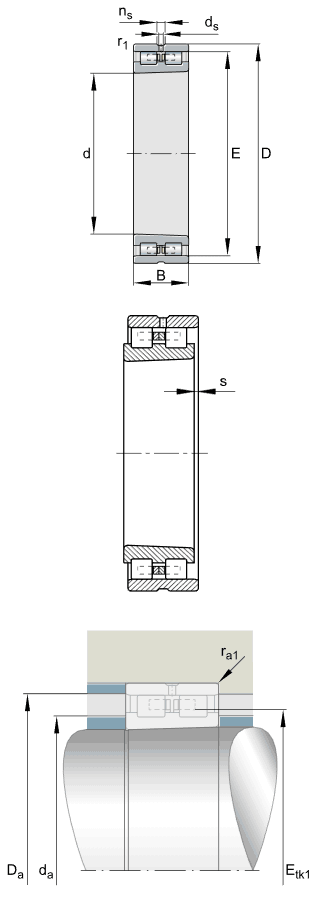

FAG NN3088-AS-K-M-SP details
| Number | NN3088-AS-K-M-SP | |
|---|---|---|
| Type | Super precision cylindrical roller bearings main dimensions to DIN 5412-4, non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage, reduced radial internal clearance, restricted tolerances | |
| d | 440mm | |
| D | 650mm | |
| B | 157mm | |
| Da max | 609mm | Tolerance: H12 |
| da min | 501mm | Tolerance: h12 |
| ds | 12,5mm | |
| E | 597mm | |
| ns | 23,5mm | |
| r1 min | 6mm | |
| ra1 max | 5mm | |
| s | 10,2mm | Axial displacement facility from central position |
| m | 172kg | ≈ Mass |
| Cr | 2430000N | Basic dynamic load rating, radial |
| C0r | 5100000N | Basic static load rating, radial |
| Cur | 490000N | Fatigue limit load, radial |
| nG Fett | 11601/min | Limiting speed for grease lubrication |
| nG Öl | 13601/min | Limiting speed for minimal quantity oil lubrication |
