TIMKEN NJ29/710MA Cylindrical roller bearing
Also known as : NJ29/710MA
- Inside Diameter: 710 mm
- Outside Diameter: 950 mm
- Width: 140 mm
- Basic dynamic load rating: 4020 kN
- Basic static load rating: 8190 kN
TIMKEN NJ29/710MA
TIMKEN NJ29/710MA details
| Bearing Number | NJ29/710MA |
|---|---|
| Brand | TIMKEN |
| Type | Cylindrical roller bearings |
| Design Units | METRIC |
| Bearing Weight | 307.000 Kg 676.80 lb |

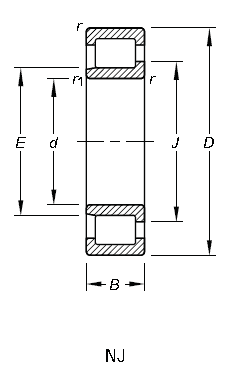

| Type | N J |
| Tapered Bore | N |
| d - Bore | 710.000 mm 27.9528 in |
| D - Outer Diameter | 950.000 mm 37.4016 in |
| C - Inner Ring Width | 140.000 mm 5.5118 in |
| B - Outer Ring Width | 140.000 mm 5.5118 in |
| C0 - Static Radial Rating | 8190000 N 1840000 lbf |
| C - Dynamic Radial Rating1 | 4020000 N 904000 lbf |
| Reference Thermal Speed Rating (Grease) | 220 |
| Reference Thermal Speed Rating (Oil)2 | 250 |
| Cg - Geometry Factor3 | 0.3473 |
| R - Inner Ring "To Clear" Radius4 | 5.000 mm 0.200 in |
| r - Outer Ring "To Clear" Radius5 | 5.000 mm 0.200 in |
| da - Inner Ring Backing Diameter | 733.000 mm 28.900 in |
| Da - Outer Ring Backing Diameter | 927.000 mm 36.500 in |
TIMKEN NJ29/710MA bearing cross reference
NN30/500-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3092-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3088-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3084-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3076-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3072-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3064-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3044-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3040-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3034-AS-K-M-SP
710 mmx 950 mmx 140 mm
NN3032-AS-K-M-SP
710 mmx 950 mmx 140 mm
