TIMKEN NUP51/571M Cylindrical roller bearing
Also known as : NUP51/571M
- Inside Diameter: 571.5 mm
- Outside Diameter: 723.9 mm
- Width: 101.6 mm
- Basic dynamic load rating: 2200 kN
- Basic static load rating: 4930 kN
TIMKEN NUP51/571M

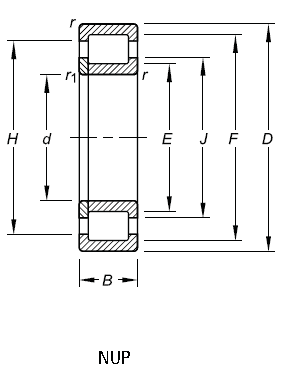

TIMKEN NUP51/571M details
| Bearing Number | NUP51/571M |
|---|---|
| Brand | TIMKEN |
| Type | Cylindrical roller bearings |
| Design Units | METRIC |
| Bearing Weight | 119.00 Kg 262.40 lb |
| Type | N UP |
| Tapered Bore | N |
| d - Bore | 571.500 mm 22.5000 in |
| D - Outer Diameter | 723.900 mm 28.5000 in |
| C - Inner Ring Width | 88.400 mm 3.4803 in |
| B - Outer Ring Width | 101.600 mm 4.0000 in |
| C0 - Static Radial Rating | 4930000 N 1110000 lbf |
| C - Dynamic Radial Rating1 | 2200000 N 495000 lbf |
| Reference Thermal Speed Rating (Grease) | 280 |
| Reference Thermal Speed Rating (Oil)2 | 310 |
| Cg - Geometry Factor3 | 0.2855 |
| R - Inner Ring "To Clear" Radius4 | 4.000 mm 0.200 in |
| r - Outer Ring "To Clear" Radius5 | 4.000 mm 0.200 in |
| da - Inner Ring Backing Diameter | 590.000 mm 23.200 in |
| Da - Outer Ring Backing Diameter | 706.000 mm 27.800 in |
