NSK NU2308ET Cylindrical roller bearing
Also known as : NU2308ET, NU2308ECP
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 33 mm
- Basic dynamic load rating: 114 kN
- Basic static load rating: 122 kN
NSK NU2308ET

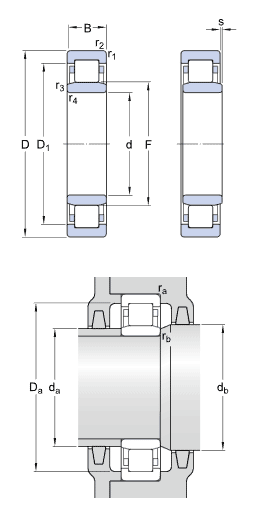

NSK NU2308ET details
| model | NU2308ET |
|---|---|
| d | 40 mm |
| D | 90 mm |
| B | 33 mm |
| rmin. | 1.5 mm |
| r1 min. | 1.5 mm |
| Fw | 52 mm |
| Cr |
114000 N 11600 kgf |
| C0r |
122000 N 12500 kgf |
| Limiting speeds | 6000 min-1 (Grease) |
| Limiting speeds | 7500 min-1 (Oil) |
| db min | 48 mm |
| db max | 50 mm |
| Da | 82.0 mm |
| ra | 1.5 mm |
| rb | 1.5 mm |
| Mass | 0.933 kg (approx.) |
NSK NU2308ET bearing cross reference
NN30/500-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3092-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3088-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3084-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3076-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3072-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3064-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3044-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3040-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3034-AS-K-M-SP
40 mmx 90 mmx 33 mm
NN3032-AS-K-M-SP
40 mmx 90 mmx 33 mm
