FAG NN3012-D-TVP-SP-XL

FAG NN3012-D-TVP-SP-XL Cylindrical roller bearing

Also known as : NN3012-D-TVP-SP-XL

Inside Diameter: 60 mm
Outside Diameter: 95 mm
Width: 26 mm
Basic dynamic load rating: 87 kN
Basic static load rating: 106 kN

FAG NN3012-D-TVP-SP-XL

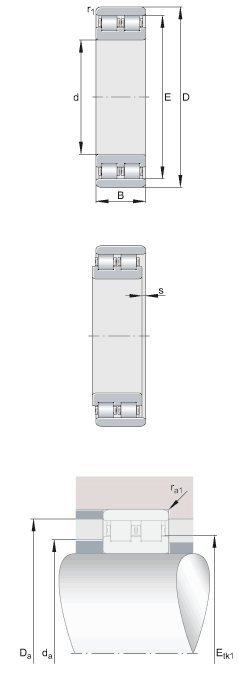

FAG NN3012-D-TVP-SP-XL details

Number	NN3012-D-TVP-SP-XL
Type	Super precision cylindrical roller bearings non-locating bearing, double row, separable, with cage
d	60mm
D	95mm
B	26mm
D_{a max}	88mm	Tolerance: H12
d_{a min}	70,1mm	Tolerance: h12
E	86,1mm
r_{1 min}	1,1mm
r_{a1 max}	1mm
s	1,9mm	Axial displacement facility from central position
m	0,65kg	≈ Mass
C_r	87000N	Basic dynamic load rating, radial
C_0r	106000N	Basic static load rating, radial
C_ur	17100N	Fatigue limit load, radial
n_{G Fett}	113001/min	Limiting speed for grease lubrication
n_{G Öl}	133001/min	Limiting speed for minimal quantity oil lubrication

FAG NN3012-D-TVP-SP-XL bearing cross reference

NN30/500-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3092-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3088-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3084-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3076-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3072-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3064-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3044-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3040-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3034-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3032-AS-K-M-SP
60 mmx 95 mmx 26 mm

NN3024-D-K-TVP-SP-XL
60 mmx 95 mmx 26 mm
