NSK NUP2232EM Cylindrical roller bearing
Also known as : NUP2232EM &, NUP2232M
- Inside Diameter: 160 mm
- Outside Diameter: 290 mm
- Width: 80 mm
- Basic dynamic load rating: 995 kN
- Basic static load rating: 1190 kN
NSK NUP2232EM
NSK NUP2232EM details

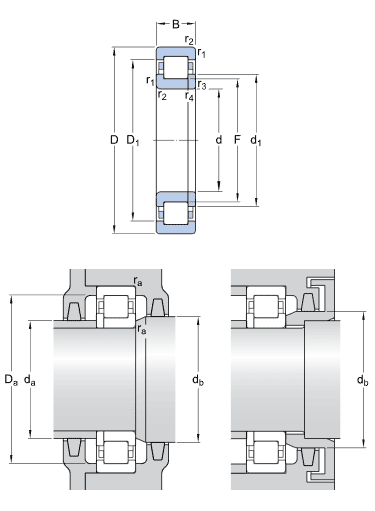

| model | NUP2232EM & |
|---|---|
| d | 160 mm |
| D | 290 mm |
| B | 80 mm |
| rmin. | 3.0 mm |
| r1 min. | 3.0 mm |
| Fw | 193.0 mm |
| Cr | 995 kN, Basic dynamic Load Ratings |
| C0r | 1190 kN, Basic static Load Ratings |
|
Limiting speeds Thermal Reference |
2400 min-1 |
|
Limiting speeds Mechanical |
3600 min-1 |
|
Limiting speeds Grease |
1900 min-1 |
|
Limiting speeds Oil |
2400 min-1 |
| Mass | 25.2 kg (approx.) |
NSK NUP2232EM bearing cross reference
NN30/500-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3092-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3088-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3084-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3076-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3072-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3064-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3044-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3040-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3034-AS-K-M-SP
160 mmx 290 mmx 80 mm
NN3032-AS-K-M-SP
160 mmx 290 mmx 80 mm
