FAG 293/600-E1-XL-MB Thrust roller bearings
Also known as : 293/600-E1-XL-MB, 293/600EM
- Inside Diameter: 600 mm
- Outside Diameter: 900 mm
- Width: 180 mm
- Basic dynamic load rating: 8700 kN
- Basic static load rating: 34000 kN
FAG 293/600-E1-XL-MB

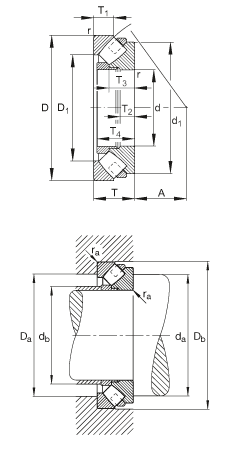

FAG 293/600-E1-XL-MB details
| model | 293/600-E1-XL-MB |
|---|---|
| d | 600 mm |
| D | 900 mm |
| T | 180 mm |
| A | 335 mm |
| D1 | 720 mm |
| Da max | 815 mm |
| Db min | 920 mm |
| d1 | 840 mm |
| da min | 745 mm |
| db max | 634 mm |
| ra max | 6 mm |
| rmin | 7.5 mm |
| T1 | 89 mm |
| T2 | 65 mm |
| T3 | 113.5 mm |
| T4 | 174 mm |
| Ca | 8700000 N |
| C0a | 34000000 N |
| Limiting speed | 660 1/min |
| Reference speed | 325 1/min |
| Cua | 2950000 N Fatigue limit load, radial |
| mass | 392 kg |
