FAG 293/500-E1-XL-MB Thrust roller bearings
Also known as : 293/500-E1-XL-MB, 293/500EM
- Inside Diameter: 500 mm
- Outside Diameter: 750 mm
- Width: 150 mm
- Basic dynamic load rating: 5900 kN
- Basic static load rating: 22000 kN
FAG 293/500-E1-XL-MB

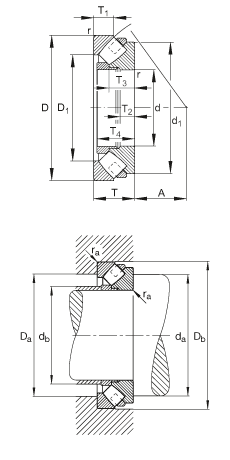

FAG 293/500-E1-XL-MB details
| model | 293/500-E1-XL-MB |
|---|---|
| d | 500 mm |
| D | 750 mm |
| T | 150 mm |
| A | 280 mm |
| D1 | 611 mm |
| Da max | 683 mm |
| Db min | 768 mm |
| d1 | 700 mm |
| da min | 625 mm |
| db max | 534 mm |
| ra max | 5 mm |
| rmin | 6 mm |
| T1 | 74 mm |
| T2 | 54 mm |
| T3 | 92 mm |
| T4 | 144 mm |
| Ca | 5900000 N |
| C0a | 22000000 N |
| Limiting speed | 800 1/min |
| Reference speed | 400 1/min |
| Cua | 1950000 N Fatigue limit load, radial |
| mass | 228 kg |
