FAG 29448-E1-XL Thrust roller bearings
Also known as : 29448-E1-XL, 29448E
- Inside Diameter: 240 mm
- Outside Diameter: 440 mm
- Width: 122 mm
- Basic dynamic load rating: 3600 kN
- Basic static load rating: 10500 kN
FAG 29448-E1-XL
FAG 29448-E1-XL details

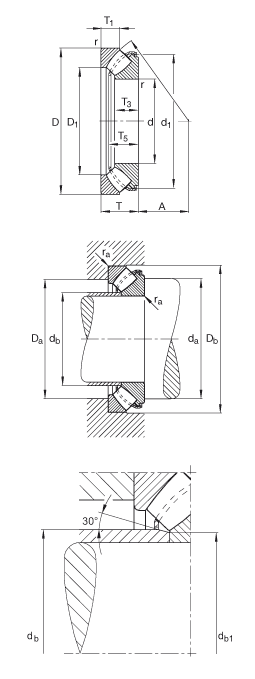

| model | 29448-E1-XL |
|---|---|
| d | 240 mm |
| D | 440 mm |
| T | 122 mm |
| A | 142 mm |
| D1 | 322 mm |
| Da max | 381 mm |
| Db min | 448 mm |
| d1 | 400 mm |
| da min | 335 mm |
| db max | 276 mm |
| ra max | 5 mm |
| rmin | 6 mm |
| T1 | 59 mm |
| T3 | 76 mm |
| T5 | 106.9 mm |
| Ca | 3600000 N |
| C0a | 10500000 N |
| Limiting speed | 1470 1/min |
| Reference speed | 740 1/min |
| Cua | 1060000 N Fatigue limit load, radial |
| mass | 74.1 kg |
