INA AXW50 Thrust roller bearings
Also known as : AXW50
- Inside Diameter: 50 mm
- Outside Diameter: 73 mm
- Width: 4.2 mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 143 kN
INA AXW50
INA AXW50 details

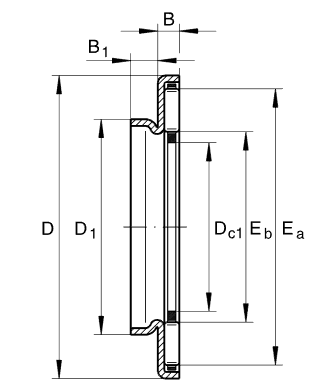

| Number | AXW50 | |
|---|---|---|
| Type |
Needle thrust bearing single direction, AXK with axial bearing washer |
|
| Dc1 | 50mm | |
| D | 73mm | |
| B | 4,2mm | |
| B1 | 4,5mm | |
| D1 | 58mm | |
| Ea | 68mm | |
| Eb | 55mm | |
| m | 49g | Mass |
| Ca | 32000N | Basic dynamic load rating, axial |
| C0a | 143000N | Basic static load rating, axial |
| Cua | 15100N | Fatigue limit load |
| nG | 47001/min | Limiting speed |
| nϑr | 21601/min | Reference speed |
| AS5070 | Allocated axial bearing washer | |
| Suitable for combination with various drawn cup needle roller bearings and needle roller bearings, see under "Accessories". | ||
|
HK5020, HK5025 |
||
| HK5022-RS | ||
| NKS43 | ||
| NKIS35 |
INA AXW50 bearing cross reference
81222-TV
50 mmx 73 mmx4.2 mm
89326-M
50 mmx 73 mmx4.2 mm
K81217-TV
50 mmx 73 mmx4.2 mm
K81214-TV
50 mmx 73 mmx4.2 mm
K81212-TV
50 mmx 73 mmx4.2 mm
K81211-TV
50 mmx 73 mmx4.2 mm
K81207-TV
50 mmx 73 mmx4.2 mm
K81160-M
50 mmx 73 mmx4.2 mm
K81148-M
50 mmx 73 mmx4.2 mm
K81144-M
50 mmx 73 mmx4.2 mm
K81136-M
50 mmx 73 mmx4.2 mm
