NSK NBX17709

NSK NBX17709 Thin walled ball bearings

Also known as : NBX17709

Inside Diameter: 177.8 mm
Outside Diameter: 196.85 mm
Width: 9.525 mm
Basic dynamic load rating: 16.5 kN
Basic static load rating: 21.3 kN

NSK NBX17709

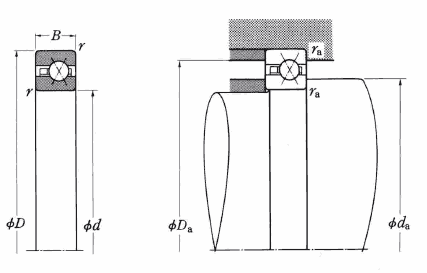

NSK NBX17709 details

Number	NBX17709
d	177.8 mm
D	196.85 mm
B	9.525 mm
r_min.	1.1 mm
C_r	16.5 KN
C_0r	21.3 KN
d_{a min}	183 mm
D_{a max}	191.5 mm
r_{a max}	1 mm
Mass	0.32 kg (approx.)

NSK NBX17709 bearing cross reference

NBX20325
177.8 mmx 196.85 mmx 9.525 mm

NBX19025
177.8 mmx 196.85 mmx 9.525 mm

NBX17719
177.8 mmx 196.85 mmx 9.525 mm

NBX17709
177.8 mmx 196.85 mmx 9.525 mm

NBX17707
177.8 mmx 196.85 mmx 9.525 mm

NBX17706
177.8 mmx 196.85 mmx 9.525 mm

NBX16525
177.8 mmx 196.85 mmx 9.525 mm

NBX16519
177.8 mmx 196.85 mmx 9.525 mm

NBX16512
177.8 mmx 196.85 mmx 9.525 mm

NBX16509
177.8 mmx 196.85 mmx 9.525 mm

NBX16507
177.8 mmx 196.85 mmx 9.525 mm

NBX15225
177.8 mmx 196.85 mmx 9.525 mm
