NTN 231/560B Self-aligning roller bearing
Also known as : 231/560B
- Inside Diameter: 560 mm
- Outside Diameter: 920 mm
- Width: 280 mm
- Basic dynamic load rating: 8550 kN
- Basic static load rating: 15500 kN
NTN 231/560B
NTN 231/560B details
|

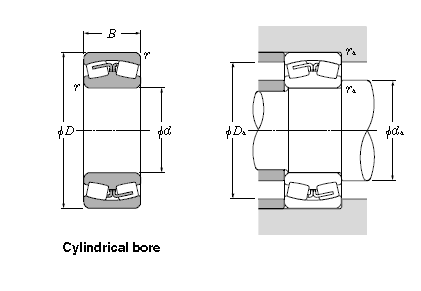

Boundary dimensions (mm) |
Basic load ratings (kN) |
Fatigue load limit (kN) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Bore dia. d | Outside dia. D | Width B |
Chamfer rs min |
Dynamic Cr | Static C0r | Cu | Grease | Oil | |
| 560 | 920 | 280 | 7.5 | 8 550 | 15 500 | 1 000 | 280 | 370 | 752 |
|
Abutment and fillet dimensions (mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | da | Da | D1 | ras | |||||||
| min | max | max | |||||||||
| 650 | 596 | 884 | 801 | 6 | |||||||
Xinyouya have NTN 231/560B bearings in stock. 231/560B, Spherical roller bearings, Cylindrical bore.
NTN 231/560B bearing cross reference
24068EMD1
560 mmx 920 mmx 280 mm
232/560B
560 mmx 920 mmx 280 mm
241/560B
560 mmx 920 mmx 280 mm
231/560B
560 mmx 920 mmx 280 mm
23992
560 mmx 920 mmx 280 mm
23996
560 mmx 920 mmx 280 mm
240/560B
560 mmx 920 mmx 280 mm
232/530B
560 mmx 920 mmx 280 mm
23092B
560 mmx 920 mmx 280 mm
23096B
560 mmx 920 mmx 280 mm
230/560B
560 mmx 920 mmx 280 mm
