NTN 24080B Self-aligning roller bearing
Also known as : 24080CAME4
- Inside Diameter: 400 mm
- Outside Diameter: 600 mm
- Width: 200 mm
- Basic dynamic load rating: 4250 kN
- Basic static load rating: 8400 kN
NTN 24080B
NTN 24080B details
|
Boundary dimensions (mm) |
Basic load ratings (kN) |
Fatigue load limit (kN) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Bore dia. d | Outside dia. D | Width B |
Chamfer rs min |
Dynamic Cr | Static C0r | Cu | Grease | Oil | |
| 400 | 600 | 200 | 5 | 4 250 | 8 400 | 485 | 460 | 600 | 202 |
|

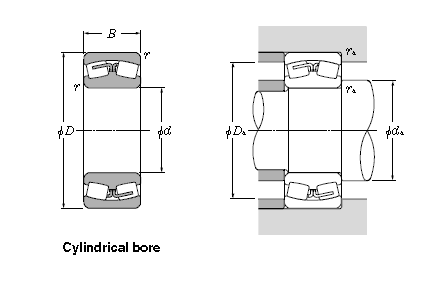

Abutment and fillet dimensions (mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | da | Da | D1 | ras | |||||||
| min | max | max | |||||||||
| 446 | 422 | 578 | 528 | 4 | |||||||
Xinyouya have NTN 24080B bearings in stock. 24080B, Spherical roller bearings, Cylindrical bore.
NTN 24080B bearing cross reference
24068EMD1
400 mmx 600 mmx 200 mm
232/560B
400 mmx 600 mmx 200 mm
241/560B
400 mmx 600 mmx 200 mm
231/560B
400 mmx 600 mmx 200 mm
23992
400 mmx 600 mmx 200 mm
23996
400 mmx 600 mmx 200 mm
240/560B
400 mmx 600 mmx 200 mm
232/530B
400 mmx 600 mmx 200 mm
23092B
400 mmx 600 mmx 200 mm
23096B
400 mmx 600 mmx 200 mm
230/560B
400 mmx 600 mmx 200 mm
