FAG 24184-BE-XL-K30 Self-aligning roller bearing
Also known as : 24184-BE-XL-K30
- Inside Diameter: 420 mm
- Outside Diameter: 700 mm
- Width: 280 mm
- Basic dynamic load rating: 7400 kN
- Basic static load rating: 12600 kN
FAG 24184-BE-XL-K30

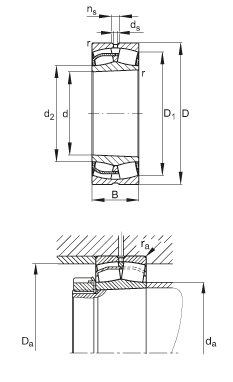

FAG 24184-BE-XL-K30 details
| Number | 24184-BE-XL-K30 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 420 mm | |
| D | 700 mm | |
| B | 280 mm | |
| D1 | 592,2 mm | |
| Da max | 674 mm | |
| d2 | 472,7 mm | |
| da min | 446 mm | |
| ds | 12,5 mm | |
| ns | 23,5 mm | |
| ra max | 5 mm | |
| rmin | 6 mm | |
| m | 431 kg | Mass |
| Cr | 7400000 N | Basic dynamic load rating, radial |
| C0r | 12600000 N | Basic static load rating, radial |
| Cur | 860000 N | Fatigue limit load, radial |
| nG | 720 1/min | Limiting speed |
| nB | 270 1/min | Reference speed |
| e | 0,39 | |
| Y1 | 1,72 | |
| Y2 | 2,56 | |
| Y0 | 1,68 |
FAG 24184-BE-XL-K30 bearing cross reference
24068EMD1
420 mmx 700 mmx 280 mm
232/560B
420 mmx 700 mmx 280 mm
241/560B
420 mmx 700 mmx 280 mm
231/560B
420 mmx 700 mmx 280 mm
23992
420 mmx 700 mmx 280 mm
23996
420 mmx 700 mmx 280 mm
240/560B
420 mmx 700 mmx 280 mm
232/530B
420 mmx 700 mmx 280 mm
23092B
420 mmx 700 mmx 280 mm
23096B
420 mmx 700 mmx 280 mm
230/560B
420 mmx 700 mmx 280 mm
