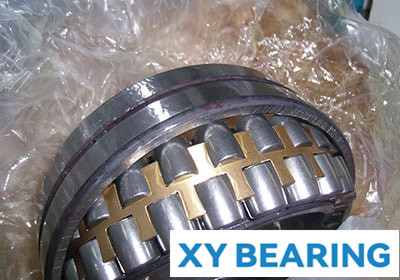

FAG 23256-BEA-XL-K-MB1 Self-aligning roller bearing
Also known as : 23256-BEA-XL-K-MB1
- Inside Diameter: 280 mm
- Outside Diameter: 500 mm
- Width: 176 mm
- Basic dynamic load rating: 3550 kN
- Basic static load rating: 5200 kN
FAG 23256-BEA-XL-K-MB1
FAG 23256-BEA-XL-K-MB1 details
| Number | 23256-BEA-XL-K-MB1 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 280 mm | |
| D | 500 mm | |
| B | 176 mm | |
| D1 | 425,4 mm | |
| Da max | 480 mm | |
| da min | 300 mm | |
| ds | 12,5 mm | |
| ns | 23,5 mm | |
| ra max | 4 mm | |
| rmin | 5 mm | |
| m | 143,7 kg | Mass |
| Cr | 3550000 N | Basic dynamic load rating, radial |
| C0r | 5200000 N | Basic static load rating, radial |
| nG | 1280 1/min | Limiting speed |
| Cur | 385000 N | Fatigue limit load, radial |
| nB | 630 1/min | Reference speed |
| e | 0,34 | |
| Y1 | 1,96 | |
| Y2 | 2,92 | |
| Y0 | 1,92 |
