FAG 23140-BE-XL-2RSR Self-aligning roller bearing
Also known as : 23140-BE-XL-2RSR
- Inside Diameter: 200 mm
- Outside Diameter: 340 mm
- Width: 112 mm
- Basic dynamic load rating: 1620 kN
- Basic static load rating: 2270 kN
FAG 23140-BE-XL-2RSR

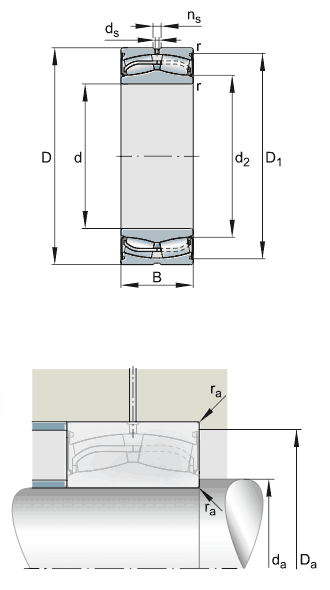

FAG 23140-BE-XL-2RSR details
| Number | 23140-BE-XL-2RSR | |
|---|---|---|
| Type |
Sealed spherical roller bearings Lip seal on both sides |
|
| d | 200mm | |
| D | 340mm | |
| B | 112mm | |
| D1 | 319mm | |
| Da max | 326mm | |
| d2 | 224,6mm | |
| da min | 214mm | |
| ds | 9,5mm | |
| ns | 17,7mm | |
| ra max | 2,5mm | |
| rmin | 3mm | |
| m | 41,5kg | Mass |
| Cr | 1620000N | Basic dynamic load rating, radial |
| C0r | 2270000N | Basic static load rating, radial |
| Cur | 194000N | Fatigue limit load, radial |
| nG | 5101/min | Limiting speed |
| e | 0,3 | |
| Y1 | 2,25 | |
| Y2 | 3,34 | |
| Y0 | 2,2 |
FAG 23140-BE-XL-2RSR bearing cross reference
24068EMD1
200 mmx 340 mmx 112 mm
232/560B
200 mmx 340 mmx 112 mm
241/560B
200 mmx 340 mmx 112 mm
231/560B
200 mmx 340 mmx 112 mm
23992
200 mmx 340 mmx 112 mm
23996
200 mmx 340 mmx 112 mm
240/560B
200 mmx 340 mmx 112 mm
232/530B
200 mmx 340 mmx 112 mm
23092B
200 mmx 340 mmx 112 mm
23096B
200 mmx 340 mmx 112 mm
230/560B
200 mmx 340 mmx 112 mm
