SKF 22338 CCJA/W33VA405 Self-aligning roller bearing
Also known as :
- Inside Diameter: 190 mm
- Outside Diameter: 400 mm
- Width: 132 mm
- Basic dynamic load rating: 2232 kN
- Basic static load rating: 2650 kN
SKF 22338 CCJA/W33VA405
SKF 22338 CCJA/W33VA405 details
| Part Number | 22338 CCJA/W33VA405 | |
|---|---|---|
| Brand | SKF | |
| Description | Spherical roller bearing for vibratory applications, with relubrication features | |
| Bore type | Cylindrical | |
| Tolerance class for dimensions | Normal, bore to P5 and outside diameter P6 | |
| Tolerance class for run-out | Normal | |
| Radial internal clearance | C4 | |
| Cage | Surface-hardened sheet metal | |

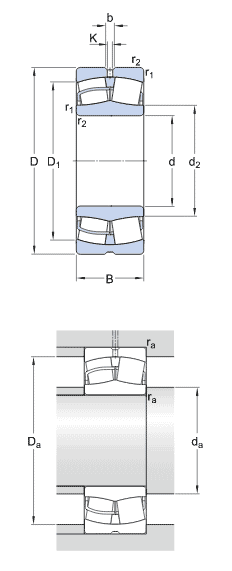

| Dimensions | ||
| d | 190 mm | Bore diameter |
| D | 400 mm | Outside diameter |
| B | 132 mm | Width |
| d2 | 236 mm | Shoulder diameter of inner ring |
| D1 | 333 mm | Shoulder/recess diameter of outer ring |
| b | 22.3 mm | Width of lubrication groove |
| K | 12 mm | Diameter of lubrication hole |
| r1,2 | min. 5 mm | Chamfer dimension |
| Abutment dimensions | ||
| da | min. 210 mm | Diameter of shaft abutment |
| Da | max. 380 mm | Diameter of housing abutment |
| ra | max. 4 mm | Radius of fillet |
| Calculation data | ||
| C | 2232 kN | Basic dynamic load rating |
| C0 | 2650 kN | Basic static load rating |
| Pu | 208 kN | Fatigue load limit |
| Limiting speed | 1600 r/min | |
| Mass | ||
| Net Weight | 78.6 kg | |
