NSK 23220CKE4

NSK 23220CKE4 Self-aligning roller bearing

Also known as : 23220CKE4, 23220CC/W33

Inside Diameter: 100 mm
Outside Diameter: 180 mm
Width: 60.3 mm
Basic dynamic load rating: 420 kN
Basic static load rating: 605 kN

NSK 23220CKE4

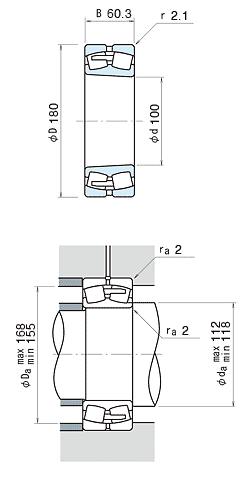

NSK 23220CKE4 details

model	23220CKE4
d	100 mm
D	180 mm
B	60.3 mm
r_min.	2.1 mm
C_r	420000 N 42500 kgf
C_0r	605000 N 61500 kgf
Limiting speeds	1600 min^-1 (Grease)
Limiting speeds	2200 min^-1 (Oil)
d_{a min}	112 mm
d_{a max}	118 mm
D_{a max}	168 mm
D_{a min}	155 mm
r_a	2.0 mm
Constant	0.32
Y₂	3.2 Axial Load Factors
Y₃	2.1 Axial Load Factors
Y₀	2.1 Axial Load Factors
Mass	6.58 kg (approx.)
