NSK 22219EAE4 Self-aligning roller bearing
Also known as : 22219EAE4, 22219CC/W33
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 43 mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 450 kN

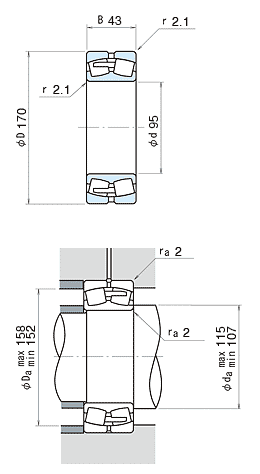

NSK 22219EAE4
NSK 22219EAE4 details
| model | 22219EAE4 |
|---|---|
| d | 95 mm |
| D | 170 mm |
| B | 43.0 mm |
| rmin. | 2.1 mm |
| Cr |
415000 N 42000 kgf |
| C0r |
450000 N 46000 kgf |
| Limiting speeds | 3000 min-1 (Grease) |
| Limiting speeds | 3800 min-1 (Oil) |
| da min | 107 mm |
| da max | 115.000 mm |
| Da max | 158 mm |
| Da min | 152 mm |
| ra | 2.0 mm |
| Constant | 0.24 |
| Y2 | 4.3 Axial Load Factors |
| Y3 | 2.9 Axial Load Factors |
| Y0 | 2.8 Axial Load Factors |
| Mass | 4.04 kg (approx.) |
