NSK 23030CDE4 Self-aligning roller bearing
Also known as : 23030CDE4, 23030CC/W33
- Inside Diameter: 150 mm
- Outside Diameter: 225 mm
- Width: 56 mm
- Basic dynamic load rating: 470 kN
- Basic static load rating: 815 kN
NSK 23030CDE4

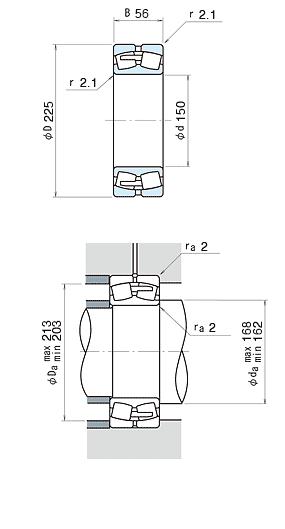

NSK 23030CDE4 details
| model | 23030CDE4 |
|---|---|
| d | 150 mm |
| D | 225 mm |
| B | 56.0 mm |
| rmin. | 2.1 mm |
| Cr |
470000 N 48000 kgf |
| C0r |
815000 N 83000 kgf |
| Limiting speeds | 1400 min-1 (Grease) |
| Limiting speeds | 1800 min-1 (Oil) |
| da min | 162 mm |
| da max | 168.000 mm |
| Da max | 213 mm |
| Da min | 203 mm |
| ra | 2.0 mm |
| Constant | 0.22 |
| Y2 | 4.6 Axial Load Factors |
| Y3 | 3.1 Axial Load Factors |
| Y0 | 3 Axial Load Factors |
| Mass | 7.90 kg (approx.) |
