NSK 23156CAME4 Self-aligning roller bearing
Also known as : 23156CAME4, 23156CC/W33
- Inside Diameter: 280 mm
- Outside Diameter: 460 mm
- Width: 146 mm
- Basic dynamic load rating: 2230 kN
- Basic static load rating: 4000 kN
NSK 23156CAME4

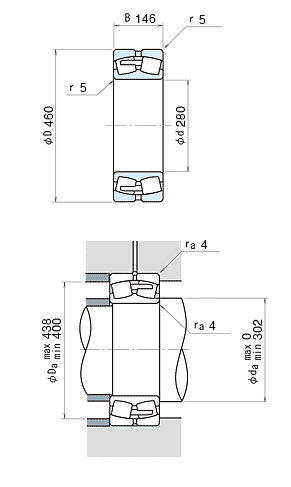

NSK 23156CAME4 details
| model | 23156CAME4 |
|---|---|
| d | 280 mm |
| D | 460 mm |
| B | 146.0 mm |
| rmin. | 5.0 mm |
| Cr |
2230000 N 228000 kgf |
| C0r |
4000000 N 410000 kgf |
| Limiting speeds | 560 min-1 (Grease) |
| Limiting speeds | 750 min-1 (Oil) |
| da min | 302 mm |
| da max | 0.000 mm |
| Da max | 438 mm |
| Da min | 400 mm |
| ra | 4.0 mm |
| Constant | 0.3 |
| Y2 | 3.3 Axial Load Factors |
| Y3 | 2.2 Axial Load Factors |
| Y0 | 2.2 Axial Load Factors |
| Mass | 94.30 kg (approx.) |
NSK 23156CAME4 bearing cross reference
24068EMD1
280 mmx 460 mmx 146 mm
232/560B
280 mmx 460 mmx 146 mm
241/560B
280 mmx 460 mmx 146 mm
231/560B
280 mmx 460 mmx 146 mm
23992
280 mmx 460 mmx 146 mm
23996
280 mmx 460 mmx 146 mm
240/560B
280 mmx 460 mmx 146 mm
232/530B
280 mmx 460 mmx 146 mm
23092B
280 mmx 460 mmx 146 mm
23096B
280 mmx 460 mmx 146 mm
230/560B
280 mmx 460 mmx 146 mm
