NSK 23222CAE4 Self-aligning roller bearing
Also known as : 23222CAE4, 23222CC/W33
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 69.8 mm
- Basic dynamic load rating: 515 kN
- Basic static load rating: 760 kN
NSK 23222CAE4

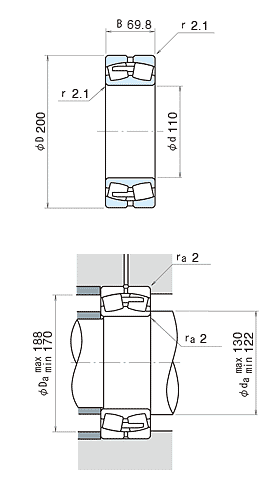

NSK 23222CAE4 details
| model | 23222CAE4 |
|---|---|
| d | 110 mm |
| D | 200 mm |
| B | 69.8 mm |
| rmin. | 2.1 mm |
| Cr |
515000 N 52500 kgf |
| C0r |
760000 N 77500 kgf |
| Limiting speeds | 1500 min-1 (Grease) |
| Limiting speeds | 1900 min-1 (Oil) |
| da min | 122 mm |
| da max | 130.000 mm |
| Da max | 188 mm |
| Da min | 170 mm |
| ra | 2.0 mm |
| Constant | 0.34 |
| Y2 | 3 Axial Load Factors |
| Y3 | 2 Axial Load Factors |
| Y0 | 1.9 Axial Load Factors |
| Mass | 9.54 kg (approx.) |
