NSK 24126CE4 Self-aligning roller bearing
Also known as : 24126CAME4, 24126CC/W33
- Inside Diameter: 130 mm
- Outside Diameter: 210 mm
- Width: 80 mm
- Basic dynamic load rating: 590 kN
- Basic static load rating: 1010 kN
NSK 24126CE4

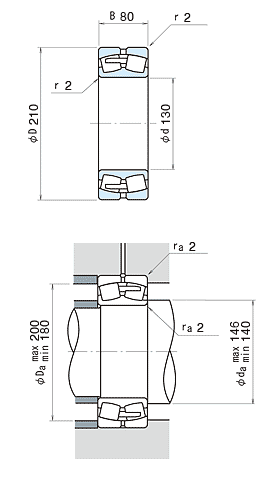

NSK 24126CE4 details
| model | 24126CAME4 |
|---|---|
| d | 130 mm |
| D | 210 mm |
| B | 80.0 mm |
| rmin. | 2.0 mm |
| Cr |
590000 N 60000 kgf |
| C0r |
1010000 N 103000 kgf |
| Limiting speeds | 1300 min-1 (Grease) |
| Limiting speeds | 1700 min-1 (Oil) |
| da min | 140 mm |
| da max | 146.000 mm |
| Da max | 200 mm |
| Da min | 180 mm |
| ra | 2.0 mm |
| Constant | 0.35 |
| Y2 | 2.9 Axial Load Factors |
| Y3 | 1.9 Axial Load Factors |
| Y0 | 1.9 Axial Load Factors |
| Mass | 10.70 kg (approx.) |
NSK 24126CE4 bearing cross reference
24068EMD1
130 mmx 210 mmx 80 mm
232/560B
130 mmx 210 mmx 80 mm
241/560B
130 mmx 210 mmx 80 mm
231/560B
130 mmx 210 mmx 80 mm
23992
130 mmx 210 mmx 80 mm
23996
130 mmx 210 mmx 80 mm
240/560B
130 mmx 210 mmx 80 mm
232/530B
130 mmx 210 mmx 80 mm
23092B
130 mmx 210 mmx 80 mm
23096B
130 mmx 210 mmx 80 mm
230/560B
130 mmx 210 mmx 80 mm
