SKF 22356CCK/W33 Self-aligning roller bearing
Also known as : 22356CCK/W33, 22356-E1-K
- Inside Diameter: 280 mm
- Outside Diameter: 580 mm
- Width: 175 mm
- Basic dynamic load rating: 4158 kN
- Basic static load rating: 5200 kN
SKF 22356CCK/W33

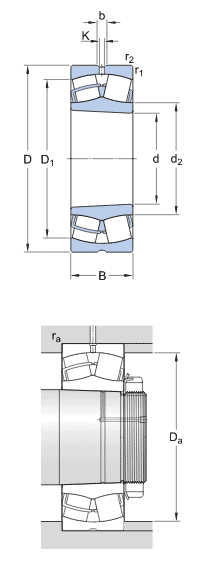

SKF 22356CCK/W33 details
| model | 22356CCK/W33 |
|---|---|
| d | 280 mm |
| D | 580 mm |
| B | 175 mm |
| d2 | 354 mm |
| D1 | 492 mm |
| b | 22.3 mm |
| K | 12 mm |
| r1,2 min. | 6 mm |
| Tapered bore, taper 1:12 | |
| Da max | 554 mm |
| ra max | 5 mm |
| C | 4158 kN, Basic dynamic load rating |
| C0 | 5200 kN, Basic static load rating |
| Pu | 365 kN, Fatigue load limit |
| Reference speed | 800 r/min |
| Limiting speed | 1100 r/min |
| e | 0.3, Calculation factor |
| Y1 | 2.3, Calculation factor |
| Y2 | 3.4, Calculation factor |
| Y0 | 2.2, Calculation factor |
| Mass | 230 kg |
