FAG 23048-BE-XL Self-aligning roller bearing
Also known as : 23048-BE-XL, 23048E, 23048EAE4
- Inside Diameter: 240 mm
- Outside Diameter: 360 mm
- Width: 92 mm
- Basic dynamic load rating: 1350 kN
- Basic static load rating: 2120 kN
FAG 23048-BE-XL

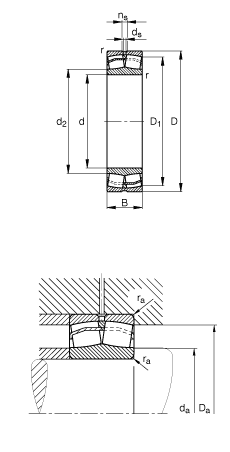

FAG 23048-BE-XL details
| model | 23048-BE-XL |
|---|---|
| d | 240 mm |
| D | 360 mm |
| B | 92 mm |
| D1 | 324.6 mm |
| Da max | 347.6 mm |
| d2 | 269.5 mm |
| da min | 252.4 mm |
| ra max | 2.5 mm |
| rmin | 3 mm |
| Cr | 1350000 N |
| C0r | 2120000 N |
| Limiting speed | 2080 1/min |
| Reference speed | 1310 1/min |
| Cur | 194000 N Fatigue limit load, radial |
| e | 0.23 |
| Y1 | 2.98 |
| Y2 | 4.44 |
| Y0 | 2.92 |
| mass | 32.6 kg |
