FAG 23030-E1A-XL-M Self-aligning roller bearing
Also known as : 23030-E1A-XL-M, 23030CAE4
- Inside Diameter: 150 mm
- Outside Diameter: 225 mm
- Width: 56 mm
- Basic dynamic load rating: 630 kN
- Basic static load rating: 880 kN
FAG 23030-E1A-XL-M

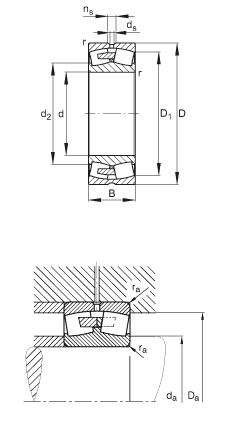

FAG 23030-E1A-XL-M details
| model | 23030-E1A-XL-M |
|---|---|
| d | 150 mm |
| D | 225 mm |
| B | 56 mm |
| D1 | 206.3 mm |
| Da max | 214.8 mm |
| da min | 160.2 mm |
| ds | 4.8 mm |
| ns | 9.5 mm |
| ra max | 2.1 mm |
| rmin | 2.1 mm |
| Cr | 630000 N |
| C0r | 880000 N |
| Limiting speed | 3250 1/min |
| Reference speed | 2210 1/min |
| Cur | 85000 N Fatigue limit load, radial |
| e | 0.22 |
| Y1 | 3.1 |
| Y2 | 4.62 |
| Y0 | 3.03 |
| mass | 7.8 kg |
FAG 23030-E1A-XL-M bearing cross reference
24068EMD1
150 mmx 225 mmx 56 mm
232/560B
150 mmx 225 mmx 56 mm
241/560B
150 mmx 225 mmx 56 mm
231/560B
150 mmx 225 mmx 56 mm
23992
150 mmx 225 mmx 56 mm
23996
150 mmx 225 mmx 56 mm
240/560B
150 mmx 225 mmx 56 mm
232/530B
150 mmx 225 mmx 56 mm
23092B
150 mmx 225 mmx 56 mm
23096B
150 mmx 225 mmx 56 mm
230/560B
150 mmx 225 mmx 56 mm
