INA GE25-PW

INA GE25-PW Spherical Plain Bearing

Also known as : GE25-PW

Inside Diameter: 25 mm
Outside Diameter: 47 mm
Width: 31 mm
Basic dynamic load rating: 84.8 kN
Basic static load rating: 212 kN

INA GE25-PW

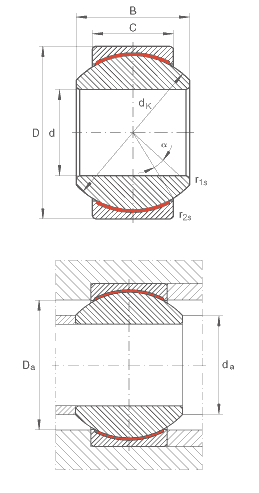

INA GE25-PW details

Number	GE25-PW
Type	Spherical plain bearings
d	25 mm	Bore tolerance: H7 (arithmetic mean value) Tolerance: +0,021/0
D	47 mm	Tolerance: 0/-0,011
B	31 mm	Tolerance: 0/-0,12
C	22 mm	Tolerance: 0/-0,24
D_{a min}	38,5 mm
d_{a max}	29,5 mm
d_K	42,85 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,6 mm	Chamfer dimension
α	15 °
m	0,24 kg	Mass
C_r	84800 N	Basic dynamic load rating, radial
C_0r	212000 N	Basic static load rating, radial
