INA GE16-PW

INA GE16-PW Spherical Plain Bearing

Also known as : GE16-PW

Inside Diameter: 16 mm
Outside Diameter: 32 mm
Width: 21 mm
Basic dynamic load rating: 38.6 kN
Basic static load rating: 96.4 kN

INA GE16-PW

INA GE16-PW details

Number	GE16-PW
Type	Spherical plain bearings

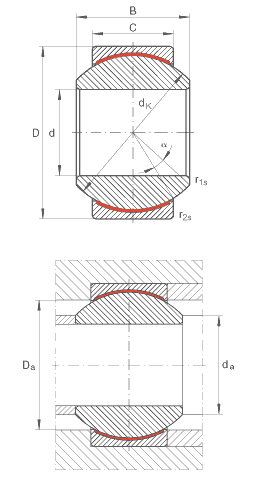

d	16 mm	Bore tolerance: H7 (arithmetic mean value) Tolerance: +0,018/0
D	32 mm	Tolerance: 0/-0,011
B	21 mm	Tolerance: 0/-0,12
C	15 mm	Tolerance: 0/-0,24
D_{a min}	25,5 mm
d_{a max}	19,3 mm
d_K	28,575 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	15 °
m	0,079 kg	Mass
C_r	38600 N	Basic dynamic load rating, radial
C_0r	96400 N	Basic static load rating, radial
