INA GE15-FW

INA GE15-FW Spherical Plain Bearing

Also known as : GE15-FW

Inside Diameter: 15 mm
Outside Diameter: 30 mm
Width: 16 mm
Basic dynamic load rating: 22.5 kN
Basic static load rating: 56.3 kN

INA GE15-FW

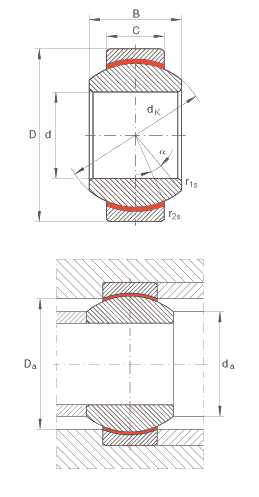

INA GE15-FW details

Number	GE15-FW
Type	Spherical plain bearings
d	15 mm	Tolerance: 0/-0,008
D	30 mm	Tolerance: 0/-0,009
B	16 mm	Tolerance: 0/-0,12
C	10 mm	Tolerance: 0/-0,24
D_{a min}	24 mm
d_{a max}	19,2 mm
d_K	25 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	16 °
m	0,049 kg	Mass
C_r	22500 N	Basic dynamic load rating, radial
C_0r	56300 N	Basic static load rating, radial
