INA GE600-DW

INA GE600-DW Spherical Plain Bearing

Also known as : GE600-DW

Inside Diameter: 600 mm
Outside Diameter: 800 mm
Width: 272 mm
Basic dynamic load rating: 48300 kN
Basic static load rating: 80500 kN

INA GE600-DW

INA GE600-DW details

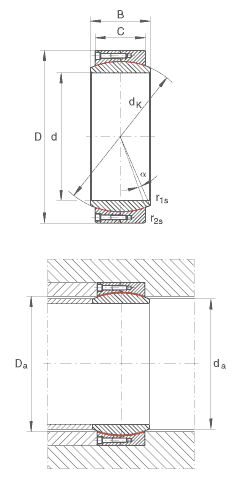

Number	GE600-DW
Type	Spherical plain bearings
d	600 mm	Tolerance: 0/-0,05
D	800 mm	Tolerance: 0/-0,075
B	272 mm	Tolerance: 0/-0,5
C	230 mm	Tolerance: 0/-1,1
D_{a min}	667 mm
d_{a max}	644,9 mm
d_K	700 mm
r_{1s min}	2 mm	Chamfer dimension
r_{2s min}	5 mm	Chamfer dimension
α	3,6 °
m	409 kg	Mass
C_r	48300000 N	Basic dynamic load rating, radial
C_0r	80500000 N	Basic static load rating, radial
		The screw design is only valid for the basic dynamic load rating C. If the load is greater, the outer ring halves must be supported by lateral clamping covers.
