INA GE34-ZO

INA GE34-ZO Spherical Plain Bearing

Also known as : GE34-ZO

Inside Diameter: 34.925 mm
Outside Diameter: 55.563 mm
Width: 30.15 mm
Basic dynamic load rating: 102 kN
Basic static load rating: 307 kN

INA GE34-ZO

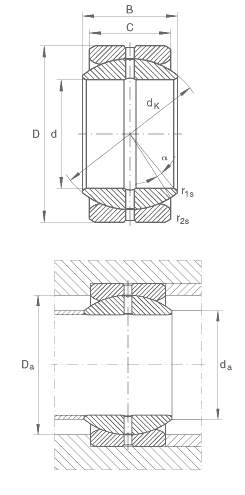

INA GE34-ZO details

Number	GE34-ZO
Type	Spherical plain bearings
d	34,925 mm	Tolerance: 0/-0,012
D	55,563 mm	Tolerance: 0/-0,013
B	30,15 mm	Tolerance: 0/-0,12
C	26,187 mm	Tolerance: 0/-0,3
D_{a min}	43,5 mm
d_{a max}	38,6 mm
d_K	49 mm
r_{1s min}	0,6 mm	Chamfer dimension
r_{2s min}	1 mm	Chamfer dimension
α	6 °
m	0,29 kg	Mass
C_r	102000 N	Basic dynamic load rating, radial
C_0r	307000 N	Basic static load rating, radial
