IKO SB30A Spherical Plain Bearing
Also known as : SB30A
- Inside Diameter: 30 mm
- Outside Diameter: 50 mm
- Width: 27 mm
- Basic dynamic load rating: 101 kN
- Basic static load rating: 609 kN
IKO SB30A

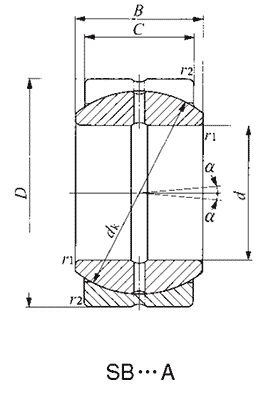

IKO SB30A details
| Identification number | SB30A |
|---|---|
| Type | Spherical plain bearings |
| Mass | 0.225 kg |
| d | 30 mm |
| D | 50 mm |
| B | 27 |
| C | 23 mm |
| dk | 45 mm |
| rs min | 0.6 mm |
| Permissible tilting angle degree | 6 mm |
| Dynamic load capacity | 101 kN |
| Static load capacity | 609 kN |
