IKO GE12E Spherical Plain Bearing
Also known as : GE12E
- Inside Diameter: 12 mm
- Outside Diameter: 22 mm
- Width: 10 mm
- Basic dynamic load rating: 12.4 kN
- Basic static load rating: 74.1 kN
IKO GE12E
IKO GE12E details

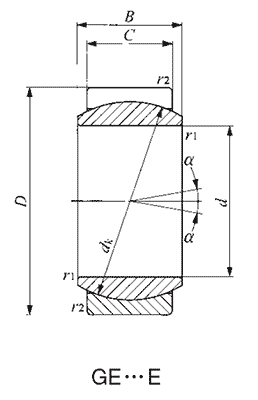

| Identification number | GE12E |
|---|---|
| Type | Spherical plain bearings |
| Mass | 0.017 kg |
| d | 12 mm |
| D | 22 mm |
| B | 10 |
| C | 7 mm |
| dk | 18 mm |
| r1s min | 0.3 mm |
| r2s min | 0.3 mm |
| Permissible tilting angle degree a | 11 |
| Permissible tilting angle degree a1 | - |
| Dynamic load capacity | 12.4 kN |
| Static load capacity | 74.1 kN |
IKO GE12E bearing cross reference
GE160-AX
12 mmx 22 mmx 10 mm
GE140-AX
12 mmx 22 mmx 10 mm
GE70-AX
12 mmx 22 mmx 10 mm
GE60-AX
12 mmx 22 mmx 10 mm
GE50-AX
12 mmx 22 mmx 10 mm
GE40-AX
12 mmx 22 mmx 10 mm
GE30-AX
12 mmx 22 mmx 10 mm
GE25-AX
12 mmx 22 mmx 10 mm
GE17-AX
12 mmx 22 mmx 10 mm
GE15-AX
12 mmx 22 mmx 10 mm
GE10-AX
12 mmx 22 mmx 10 mm
