INA GE15-DO-2RS

INA GE15-DO-2RS Spherical Plain Bearing

Also known as : GE15-DO-2RS

Inside Diameter: 15 mm
Outside Diameter: 26 mm
Width: 12 mm
Basic dynamic load rating: 16.9 kN
Basic static load rating: 84.7 kN

INA GE15-DO-2RS

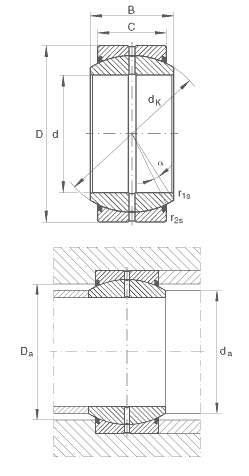

INA GE15-DO-2RS details

Number	GE15-DO-2RS
Type	Spherical plain bearings
d	15 mm	Tolerance: 0/-0,008
D	26 mm	Tolerance: 0/-0,009
B	12 mm	Tolerance: 0/-0,12
C	9 mm	Tolerance: 0/-0,24
D_{a min}	21 mm
d_{a max}	18,4 mm
d_K	22 mm	No lubrication groove on spherical inner ring surface
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	8 °
m	0,026 kg	Mass
C_r	16900 N	Basic dynamic load rating, radial
C_0r	84700 N	Basic static load rating, radial
