SKF GEH50TXE-2LS Spherical Plain Bearing
Also known as : GEH50TXE-2LS, GE50-FW-2TS
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 56 mm
- Basic dynamic load rating: 695 kN
- Basic static load rating: 1160 kN
SKF GEH50TXE-2LS

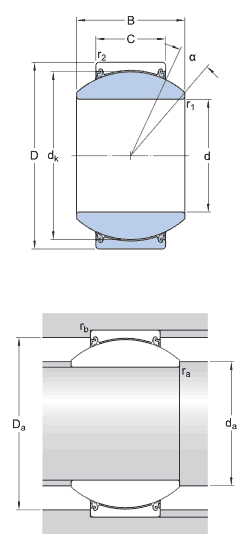

SKF GEH50TXE-2LS details
| number | GEH50TXE-2LS |
|---|---|
| Type | maintenance-free radial spherical plain bearings |
| d | 50 mm |
| D | 90 mm |
| B | 56 mm |
| C | 36 mm |
| α | 17 ° |
| dk | 80 mm |
| r1 min. | 0.6 mm |
| r2 min. | 1 mm |
| da min. | 56 mm |
| da max. | 57.1 mm |
| Da min. | 80 mm |
| Da max. | 84 mm |
| ra max. | 0.6 mm |
| rb max. | 1 mm |
| Calculation data | |
| Basic dynamic load rating C | 695 kN |
| Basic static load rating C0 | 1160 kN |
| Specific dynamic load factor K | 300 N/mm² |
| Specific static load factor K0 | 500 N/mm² |
| Mass | 1.41 kg |
