SKF GEH25C Spherical Plain Bearing
Also known as : GEH25C, GE25-FW
- Inside Diameter: 25 mm
- Outside Diameter: 47 mm
- Width: 28 mm
- Basic dynamic load rating: 65.5 kN
- Basic static load rating: 166 kN
SKF GEH25C
SKF GEH25C details

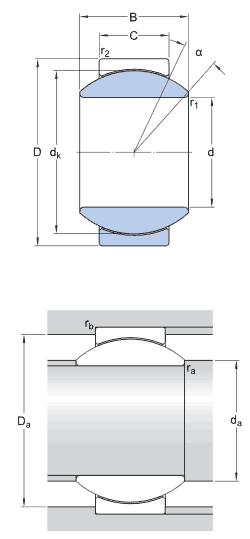

| number | GEH25C |
|---|---|
| Type | maintenance-free radial spherical plain bearings |
| d | 25 mm |
| D | 47 mm |
| B | 28 mm |
| C | 18 mm |
| α | 17 ° |
| dk | 40.7 mm |
| r1 min. | 0.6 mm |
| r2 min. | 0.6 mm |
| da min. | 27.9 mm |
| da max. | 29.5 mm |
| Da min. | 38.7 mm |
| Da max. | 44.4 mm |
| ra max. | 0.6 mm |
| rb max. | 0.6 mm |
| Calculation data | |
| Basic dynamic load rating C | 65.5 kN |
| Basic static load rating C0 | 166 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 250 N/mm² |
| Material constant KM | 1400 |
| Mass | 0.2 kg |
