SKF GE30C Spherical Plain Bearing
Also known as : GE30C, GE30-UK
- Inside Diameter: 30 mm
- Outside Diameter: 47 mm
- Width: 22 mm
- Basic dynamic load rating: 65.5 kN
- Basic static load rating: 166 kN
SKF GE30C

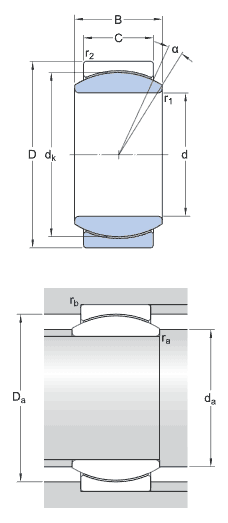

SKF GE30C details
| number | GE30C |
|---|---|
| Type | maintenance-free radial spherical plain bearings |
| d | 30 mm |
| D | 47 mm |
| B | 22 mm |
| C | 18 mm |
| α | 6 ° |
| dk | 40.7 mm |
| r1 min. | 0.6 mm |
| r2 min. | 0.6 mm |
| da min. | 32.8 mm |
| da max. | 34.2 mm |
| Da min. | 38.7 mm |
| Da max. | 44.4 mm |
| ra max. | 0.6 mm |
| rb max. | 0.6 mm |
| Calculation data | |
| Basic dynamic load rating C | 65.5 kN |
| Basic static load rating C0 | 166 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 250 N/mm² |
| Material constant KM | 1400 |
| Mass | 0.16 kg |
