SKF GEZH204ES-2RS Spherical Plain Bearing
Also known as : GEZH204ES-2RS
- Inside Diameter: 57.15 mm
- Outside Diameter: 100.013 mm
- Width: 58.877 mm
- Basic dynamic load rating: 345 kN
- Basic static load rating: 1040 kN
SKF GEZH204ES-2RS
SKF GEZH204ES-2RS details

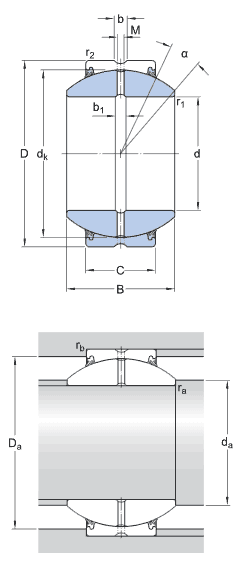

| number | GEZH204ES-2RS |
|---|---|
| Type | Radial spherical plain bearings |
| d | 57.15 mm |
| D | 100.013 mm |
| B | 58.877 mm |
| C | 47.625 mm |
| α | 8 ° |
| dk | 91.186 mm |
| b | 9 mm |
| b1 | 8 mm |
| M | 6.5 mm |
| r1 min. | 1.5 mm |
| r2 min. | 1 mm |
| da min. | 64.1 mm |
| da max. | 69.6 mm |
| Da min. | 87 mm |
| Da max. | 94.7 mm |
| ra max. | 1.5 mm |
| rb max. | 1 mm |
| Calculation data | |
| Basic dynamic load rating C | 345 kN |
| Basic static load rating C0 | 1040 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 300 N/mm² |
| Material constant KM | 330 |
| Mass | 2.1 kg |
