SKF GEZ408ES-2RS Spherical Plain Bearing
Also known as : GEZ408ES-2RS
- Inside Diameter: 114.3 mm
- Outside Diameter: 177.8 mm
- Width: 100 mm
- Basic dynamic load rating: 1120 kN
- Basic static load rating: 3400 kN
SKF GEZ408ES-2RS

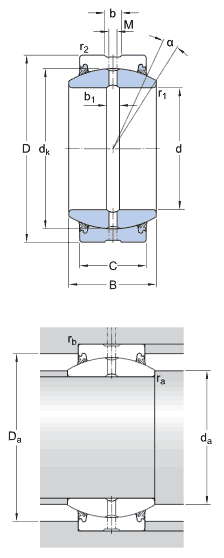

SKF GEZ408ES-2RS details
| number | GEZ408ES-2RS |
|---|---|
| Type | Radial spherical plain bearings |
| d | 114.3 mm |
| D | 177.8 mm |
| B | 100 mm |
| C | 85.725 mm |
| α | 6 ° |
| dk | 164.465 mm |
| b | 11 mm |
| b1 | 10 mm |
| M | 8 mm |
| r1 min. | 1 mm |
| r2 min. | 1.1 mm |
| da min. | 122.5 mm |
| da max. | 130.5 mm |
| Da min. | 157 mm |
| Da max. | 171 mm |
| ra max. | 1 mm |
| rb max. | 1.1 mm |
| Calculation data | |
| Basic dynamic load rating C | 1120 kN |
| Basic static load rating C0 | 3400 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 300 N/mm² |
| Material constant KM | 330 |
| Mass | 9.8 kg |
