FAG 2310-2RS-TVH

FAG 2310-2RS-TVH Aligning ball bearing

Also known as : 2310-2RS-TVH

Inside Diameter: 50 mm
Outside Diameter: 110 mm
Width: 40 mm
Basic dynamic load rating: 42 kN
Basic static load rating: 14.1 kN

FAG 2310-2RS-TVH

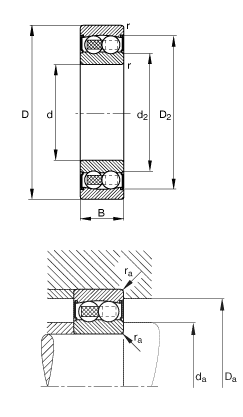

FAG 2310-2RS-TVH details

d	50 mm
D	110 mm
B	40 mm
D₂	95,1 mm
D_{a max}	99 mm
d₂	65,9 mm
d_{a min}	61 mm
r_{a max}	2 mm
r_min	2 mm
m	1,82 kg	Mass
C_r	42000 N	Basic dynamic load rating, radial
C_0r	14100 N	Basic static load rating, radial
e	0,24
Y₁	2,6
Y₂	4,03
Y₀	2,73
n_G	3750 1/min	Limiting speed
C_ur	880 N	Fatigue limit load, radial

FAG 2310-2RS-TVH bearing cross reference

11212-TVH
50 mmx 110 mmx 40 mm

11211-TVH
50 mmx 110 mmx 40 mm

11210-TVH
50 mmx 110 mmx 40 mm

11209-TVH
50 mmx 110 mmx 40 mm

11207-TVH
50 mmx 110 mmx 40 mm

11206-TVH
50 mmx 110 mmx 40 mm

11205-TVH
50 mmx 110 mmx 40 mm

11204-TVH
50 mmx 110 mmx 40 mm

2311-2RS-TVH
50 mmx 110 mmx 40 mm

2310-2RS-TVH
50 mmx 110 mmx 40 mm

2309-2RS-TVH
50 mmx 110 mmx 40 mm

2308-2RS-TVH
50 mmx 110 mmx 40 mm
